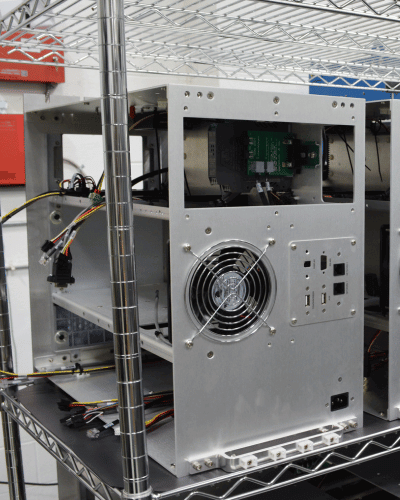

Box Build Assembly

Build trust in your manufacturing partner

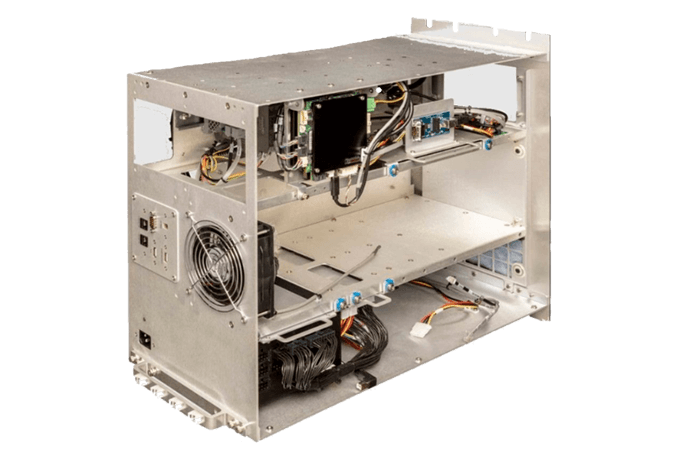

Box Build Panel

Integrate Your Systems

Box Build Assemblies, or System Integrations, include electronic systems within an enclosure. From a single PCBA in a small build to a larger cabinet with a complex electromechanical collection, this assembly houses complicated components for a compact solution.

PGF’s capabilities with PCBA and Cable Assemblies allow us the unique ability to provide a full turnkey result. Our facility’s integration of assembly types gives us the tools to integrate your systems.

Assembly Methods

These assembly methods collectively ensure the efficient integration of various components, subsystems, and electrical connections within an enclosure, resulting in a fully functional and ready-to-use product or system.

Mechanical Assembly

  • Mounting: Attaching mechanical components, such as chassis, brackets, and fasteners, to the enclosure.
  • Panel Installation: Installing control panels, displays, buttons, and switches on the front or back panel of the enclosure.
  • Structural Assembly: Assembling structural elements, frames, or internal supports within the enclosure for stability and structural integrity.

Electrical Assembly

  • Wiring and Harnessing: Connect electrical components using wire harnesses, cables, and connectors.
  • PCB Integration: Mounting and connecting printed circuit boards (PCBs) within the enclosure, including soldering or socketing electronic components.
  • Power Distribution: Installing power supply units, transformers, and circuit breakers to manage the distribution of electrical power.

Box Build Assembly Layers

The outer structure or casing that houses the integrated components, providing physical protection, support, and aesthetics to the final product.

Connect with a PGF pro to learn more

Various mechanical elements, such as chassis, brackets, fasteners, and structural supports, ensure stability, structural integrity, and proper mounting of components within the enclosure.

Connect with a PGF pro to learn more

The electrical parts and subsystems that make up the core functionality of the product, including PCBs, connectors, wiring, cables, switches, displays, power supplies, and any other electrical or electronic components required for operation.

Connect with a PGF pro to learn more

Pre-assembled subsystems or modules that are integrated into the box build assembly, such as communication modules, control modules, sensor modules, or any other specialized units that contribute to the overall functionality of the product or system.

Connect with a PGF pro to learn more

Components or interfaces that facilitate user interaction with the product, including buttons, switches, displays, touchscreens, connectors, or ports for connecting peripherals or external devices.

Connect with a PGF pro to learn more

Control Panel Assembly Services

If you’re looking for a larger, more elaborate enclosure assembly, consider our woman-owned manufacturing partner, MIS Controls, Inc. MIS Controls specializes in assembling high-quality Electrical Control Panels, Custom Enclosures, and Industrial Kiosk Control Systems.

Located on the same street as PGF, collaborations between electronic components and the larger electrical cabinet are possible through the WBENC-certified MIS Controls.

MIS Controls - Control panels

Box Build Assembly Process

Throughout the box build assembly process, quality assurance and documentation play a vital role. Proper record-keeping, including traceability of components, assembly steps, and testing results, is maintained to ensure product quality and facilitate any necessary troubleshooting or future maintenance.

The box build assembly process involves integrating various components, subsystems, and modules into a finished product or system housed within an enclosure. Here are the step-by-step descriptions of the box build assembly process:

box build

Enclosure Preparation

The process begins with the preparation of the enclosure or housing. This involves inspecting the enclosure for any defects or damage, cleaning it thoroughly, and ensuring proper alignment of mounting holes and slots.

Component Integration

The next step is integrating the components into the enclosure. This includes mounting and securing the printed circuit boards (PCBs), power supply units (PSUs), connectors, control panels, and any other required components. Proper alignment, fastening, and grounding of the components are crucial in this stage.

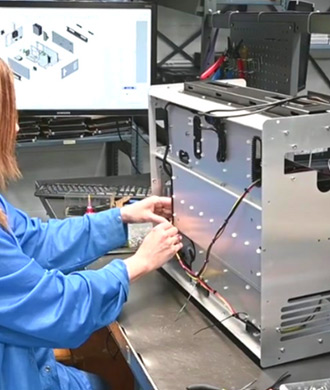

Wiring and Harnessing

The electrical wiring and harnessing process follows component integration. It involves routing and connecting wires, cables, and harnesses to establish electrical connections between the components. Careful attention is given to proper routing, length, insulation, and securing of the wires to ensure reliable and organized connections.

Subsystem Integration

If the box build assembly includes pre-assembled subsystems or modules, this step involves integrating them into the overall assembly. This may include the installation of communication modules, motor control modules, or specialized units designed for specific functionalities.

Quality Control and Testing

Once the integration is complete, the assembled product or system undergoes rigorous testing and quality control procedures. Functional, electrical, and performance tests are conducted to ensure proper functionality, adherence to specifications, and compliance with standards. Any issues or defects are addressed and rectified in this stage.

Final Assembly and Inspection

After successful testing, any remaining components, such as cooling fans, heat sinks, or covers, are installed. A final inspection is performed to verify the overall assembly quality, proper connections, alignment, and adherence to design specifications.

Packaging and Labeling

The final step involves packaging the fully assembled product or system. This includes applying appropriate packaging materials to protect the assembly during transportation and storage. Product labels, branding, and user instructions are also applied to the exterior of the packaging.

Industries Served

Box build assemblies are extensively used in industries such as industrial automation, medical devices, telecommunications, and aerospace/defense, where they enable the integration of various components into a unified system for applications like process control, healthcare diagnostics, network infrastructure, and mission-critical defense systems. These versatile assemblies ensure efficient functionality, reliability, and compliance with industry standards in diverse sectors.
