  1. How To…Operate a Selective Soldering Machine

    Leave a Comment

    What are Selective Soldering Machines?

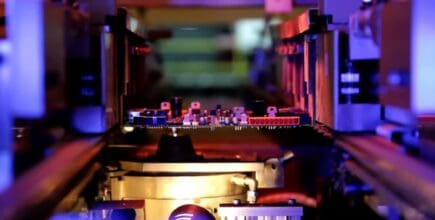

    A selective soldering machine is a specialized machine that applies molten solder to specific points on a circuit board. In the manufacturing of electronic devices, they connect components and ensure a strong, reliable electrical connection.



    The Components

    The machine typically consists of several key components, including a solder pot, a preheat station, a nozzle, and a control system.

    Solder Pot

    The solder pot holds the molten solder and heats up to the appropriate temperature for the specific type of solder.

    Preheat Station

    The preheat station heats the circuit board before the application of the solder. This component helps to prevent thermal shock and ensures a strong, reliable solder joint.

    Nozzle

    The nozzle dispenses the molten solder onto the circuit board. The commands of a computer program tell the nozzle how to function. This process allows for a high degree of accuracy and control.

    Control System

    The control system is the center for human interaction with the machine. This is the component that allows an operator to maintain surveillance and control.



    Operating Process

    To operate a selective soldering machine, the operator first loads the circuit board onto the machine’s conveyor system. The circuit board moves through the preheat station to heat it to the appropriate temperature. The operator then uses the machine’s control system to program the machine to apply the solder to the specific points on the circuit board where the component connections need to take place.

    Once the machine is programmed, the operator starts the process and the machine applies the molten solder to the specified points on the circuit board. The operator then inspects the circuit board to ensure that the solder’s application is correct and that there are no defects. If there are any defects, the operator can adjust the machine’s settings and re-run the process to correct the issue.

    It’s important to note that for selective soldering, a good setup and maintenance of the machine are crucial for the quality of the solder joints. This includes regular cleaning of the nozzle, regular calibration of the machine, and ensuring the correct temperature of the solder pot.



    In summary, selective soldering machines are specialized machines that are used to apply molten solder to specific points on a Printed Circuit Board Assembly (PCBA). A computer program controls the machine, and they require an operator to load the circuit board, program the machine, and inspect the circuit board for defects. With proper setup, maintenance and operation, selective soldering machines can produce high-quality, reliable electronic devices.

    LinkedIn LogoYouTube LogoTwitter LogoFacebook Logo

  2. Selective Soldering Process

    Leave a Comment

    The Selective Soldering Process

    Selective soldering is a key step in the electronics manufacturing process that requires specialized equipment, skilled operators, and careful control of the soldering process. As a leading electronics manufacturing service provider, PGF Technology Group has extensive experience in selective soldering and a commitment to quality, reliability, and efficiency in every aspect of our operations.



    Why Use Selective Soldering?

    Selective soldering joins components to the printed circuit board (PCB), creating a finished assembly. The process is “selective” because it involves the application of soldering only to specific areas of the PCB, rather than to all connections. This is important because not all components can withstand the high temperatures for reflow soldering. Reflow soldering is the standard process in the manufacturing of most electronic assemblies. Selective soldering allows us to protect delicate components and ensure that they are secure to the PCB, while also providing a reliable and consistent connection.



    What are the steps of the Selective Soldering Process?

    The selective soldering process typically begins with the application of flux to the pads and leads of the components. The flux helps to prepare the surface for soldering and to promote good wetting of the solder to the pads. Next, the machine places the components on the PCB, and the selective soldering equipment applies the solder. The equipment uses a combination of heat and pressure to melt the solder and join the components to the PCB. The machine carefully controls the temperature and duration of the soldering process to ensure consistent results.  The operator monitors the soldering process to ensure that each joint is soldered to the correct specifications. Here is the step-by-step explanation:

    1. Preparation: Selective Soldering Process Infographic

    Before the selective soldering process can begin, the machine and operator prepare the PCB by applying solder paste to the appropriate areas of the board. Prep work includes a stencil or a screen printing process.

    2. Component placement:

    Once the solder paste has been applied, the surface-mounted components are placed on the PCB using pick-and-place machines or other automated equipment. The components are typically held in place by a temporary adhesive or vacuum.

    3. Flux application:

    The machine applies flux to the areas of the PCB where it will apply the solder. Flux is a chemical that helps the solder flow and adheres to the PCB and component leads.

    4. Preheating:

    The machine preheats the PCB to activate the flux and remove any moisture from the PCB and components. The preheating temperature is typically between 120-150°C.

    5. Selective soldering:

    The selective soldering machine applies molten solder to the areas of the PCB that require soldering. The machine uses a solder nozzle to apply the solder in a precise and controlled manner.

    6. Cooling:

    After the soldering is complete, the machine cools the PCB to solidify the solder and ensure a strong bond between the components and the PCB.

    7. Cleaning:

    The machine then cleans the PCB to remove any excess flux or residue from the soldering process. This cleaning uses solvents, ultrasonic cleaning, or other methods.

    8. Inspection:

    Finally, the machine inspects the PCB to ensure that all components are secure and that there are no defects in the soldering process. This may involve visual inspection, automated optical inspection (AOI), or other testing methods.

    What Does PGF Offer?

    At PGF Technology Group, we use a variety of selective soldering techniques. This includes wave soldering, laser soldering, and selective spray soldering, to ensure that we have the right equipment and process for each project. Our flexible approach allows us to tailor our processes to meet the specific requirements of each customer.

    In conclusion, selective soldering is a critical step in the electronics manufacturing process. It requires specialized equipment, skilled operators, and careful control of the soldering process. As a leading electronics manufacturing service provider, PGF Technology Group has extensive experience in selective soldering. We are committed to providing quality, reliable, and cost-effective solutions to our customers. Our flexible approach and commitment to excellence ensure that we deliver the highest quality products and services to our customers, every time.

    LinkedIn LogoYouTube LogoTwitter LogoFacebook Logo
  3. 4 Huge Benefits of Selective Soldering

    Leave a Comment

    Selective soldering is an important process in the assembly of Printed Circuit Board Assemblies (PCBAs). It is a method of soldering specific areas of a PCB rather than the entire board. This process improves the accuracy and quality of the soldering process and offers several benefits over traditional soldering methods.

    The Process

    Selective soldering is an amazing process that allows manufacturers to precisely and efficiently connect components on a circuit board. It’s a process that many people don’t know much about, but it’s an essential part of creating high-quality electronic devices.

    The process itself involves using a machine to apply molten solder to specific points on a circuit board, connecting components together, and ensuring a strong and reliable electrical connection. The machine is controlled by a computer program, which allows for a high degree of accuracy and control, ensuring that each component is soldered correctly and securely.



    Top Benefits of Selective Soldering:

    1. Improves the accuracy and quality of the soldering process.

    By soldering only specific areas of the PCB, this process reduces the risk of mistakes and defects. This can lead to higher quality final products and fewer rework or repair costs. Additionally, selective soldering allows for more precise control of the temperature and duration of the soldering process, which can prevent overheating of components and reduce the risk of defects.

    2. Handles complex boards and components.

    Selective soldering equipment is capable of soldering surface-mount and through-hole components, including components with odd geometries, and different sizes and shapes. This can be beneficial for companies that manufacture complex or advanced products that require specialized assembly processes.

    3. Offers improved efficiency and productivity.

    The process is faster and more accurate than traditional soldering methods, which can lead to improved turnaround times and reduced labor costs. Additionally, selective soldering has the ability to handle large volumes, which is especially beneficial for high-volume production runs.

    4. Offers more flexibility than traditional soldering methods.

    The process adapts to changing production requirements and can integrate easily into automated assembly lines. This can be beneficial for companies that need to adapt to changes in demand or market conditions quickly.



    In conclusion, selective soldering is an important process in the assembly of Printed Circuit Board Assemblies (PCBAs) and offers several benefits over traditional soldering methods. Overall, it is a fantastic process that makes it possible to manufacture high-quality, reliable electronic devices. It’s precise, efficient, and cost-effective, making it a popular choice among manufacturers worldwide. So, if you’re looking to produce top-quality electronic devices, consider using selective soldering in your manufacturing process. It’s a surefire way to create happy and satisfied customers!
